Pipe welding is a highly specialized craft within the field of metal fabrication. It involves joining cylindrical sections of metal—commonly steel, stainless steel, copper, or aluminum—using intense heat and fusion techniques. The integrity of the welds is crucial, especially in industries such as oil and gas, plumbing, power generation, and structural engineering. Given the precision required and the risks associated with improper welds, having the right pipe welding tool is not optional—it’s a necessity.
From preparation to execution and inspection, every phase of pipe welding demands a specific toolset tailored to accuracy, safety, and efficiency. Using inadequate or incorrect tools can lead to weak joints, contamination, or even hazardous workplace conditions. Therefore, understanding the tools required and their functions is the first step to mastering this trade.
Welders need a fundamental toolkit that can handle various pipe welding operations. These tools fall into categories based on their function: measuring and layout, cutting and preparation, alignment and clamping, welding, and inspection.
Accuracy starts with measurement. Before making a single cut or applying any heat, a welder needs to measure and mark the pipe correctly.
Tape Measure – A durable, lockable tape is essential for measuring pipe length.
Center Finder – Helps locate the exact center of a round pipe for symmetrical welding.
Wrap-A-Round – A flexible tool used for marking straight or angled cuts on cylindrical pipes.
Soapstone Marker – Unlike ink, soapstone can withstand high heat and provides clear visibility on metal surfaces.
All these tools ensure your initial layout is perfect, which directly influences the quality of your final weld.
No matter how skilled a welder is, starting with improperly prepared pipe ends will compromise the entire job. Pipe cutting and preparation tools help create clean, even surfaces for better weld penetration.
Pipe Cutters – Manual or powered cutters provide a straight, burr-free cut ideal for thin-walled pipes.
Oxy-Fuel Torch or Plasma Cutter – Used for thicker pipes or more complex bevels, these tools require skill but offer flexibility.
Angle Grinders – Used post-cutting to smooth edges or clean up the surface before welding.
Proper beveling ensures maximum fusion at the joint.
Pipe Beveling Machines – These can be manual or electric and are vital for preparing the pipe edge to accept weld metal.
Deburring Tools – Small handheld tools used to remove burrs and sharp edges inside the pipe to prevent contamination.
Good preparation reduces porosity and improves the weld’s strength and appearance.
Even with well-cut and beveled pipe ends, misalignment can destroy weld integrity. This is where alignment and clamping tools come into play.

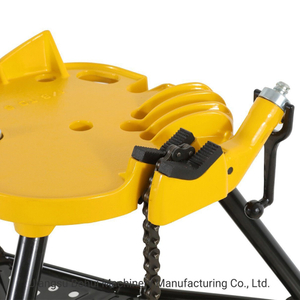

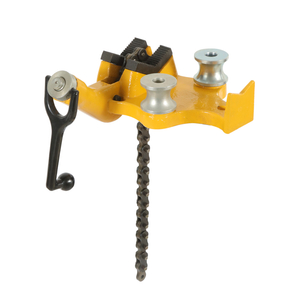

Chain Clamps – Flexible clamps that wrap around the pipe and hold it in position.

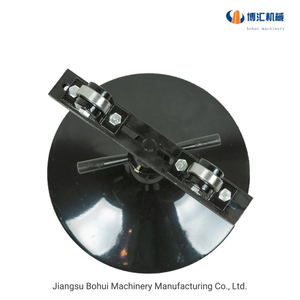

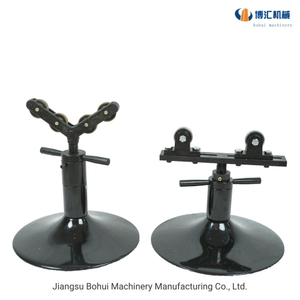

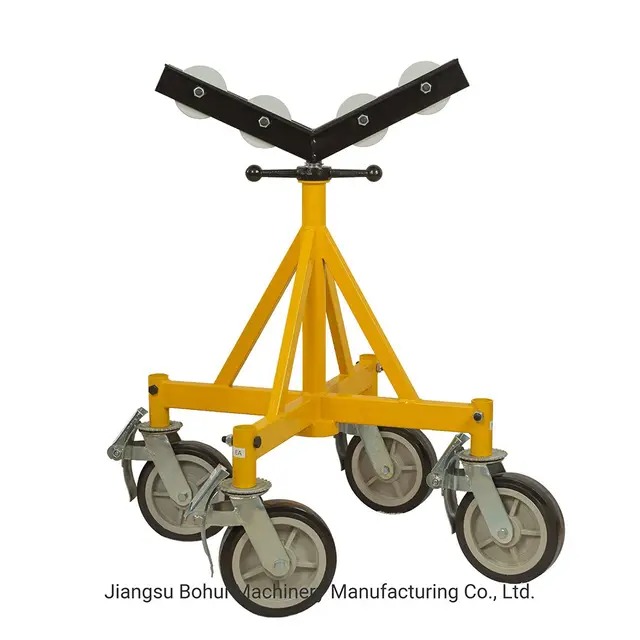

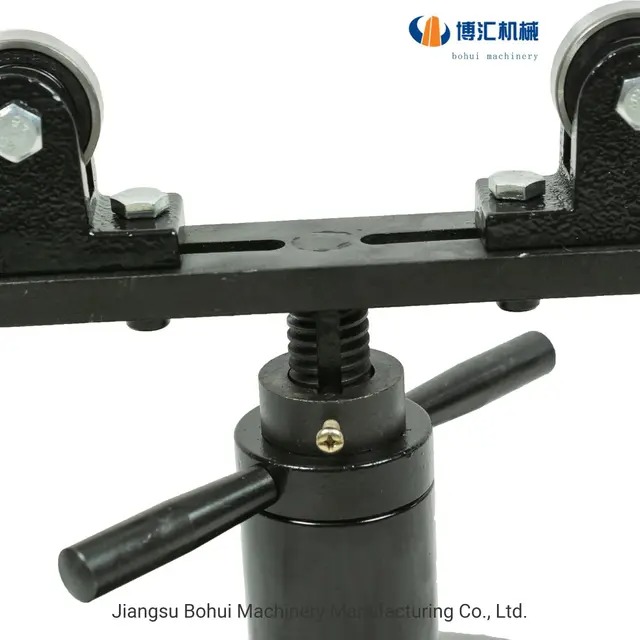

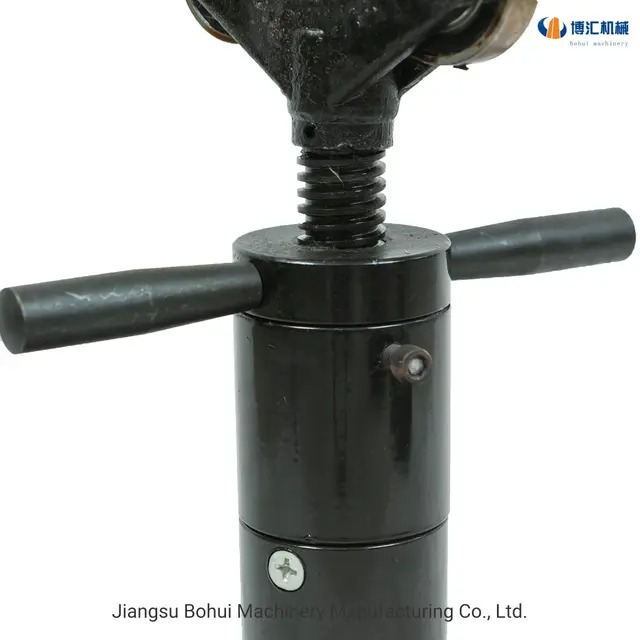

Pipe Stands and Jacks – Adjustable height stands to stabilize and align the pipe during welding.

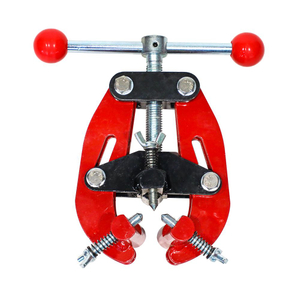

Fit-Up Clamps – Precision clamps designed to hold two pipes in exact alignment for tack welding.
Proper alignment tools prevent warping, eliminate gaps, and ensure uniformity, especially critical in pressurized systems.
Now we move into the heart of the operation: the actual welding process. The pipe welding tool category here includes machines and accessories required for TIG, MIG, or Stick welding.
Stick (SMAW) Welder – Common in heavy-duty applications; excellent for outdoor use and dirty surfaces.
TIG (GTAW) Welder – Offers superior control and clean welds, best for stainless steel and thin-walled pipes.
MIG (GMAW) Welder – Good for high-speed production work but less versatile in tight spaces.
Electrodes or Filler Rods – Match the base material and welding method.
Ground Clamps – Complete the circuit and ensure stable arc conditions.
Tungsten Electrodes (for TIG) – Provide the arc in non-consumable TIG welding.
These tools define the quality and strength of your weld. Investing in reliable machines and understanding their applications is key to successful pipe welding.
Welding is inherently dangerous, and safety must always be a priority. After the weld is done, inspection tools help validate the quality of your work.
Welding Helmet with Auto-Darkening Lens – Protects eyes from intense light and UV radiation.
Fire-Resistant Clothing – Essential for protecting skin from sparks and hot slag.
Welding Gloves and Boots – Shield hands and feet from burns and electrical hazards.
Fume Extractors or Respirators – Prevent inhalation of toxic welding fumes.
Weld Gauges – Measure reinforcement, undercut, and penetration depth.
Magnifying Glass – Used to detect surface cracks or imperfections.
Ultrasonic Testers – For non-destructive internal weld inspections.
These tools ensure not only safety during the welding process but also validate the integrity of your work afterward.
| Tool Category | Example Tools | Function |
|---|---|---|
| Measuring & Layout | Tape Measure, Wrap-A-Round, Soapstone | Ensure accurate cuts and alignments |
| Cutting & Preparation | Pipe Cutters, Beveling Machines, Grinders | Create clean edges and proper bevels |
| Alignment & Clamping | Chain Clamps, Fit-Up Clamps, Pipe Stands | Hold and position pipe for welding |
| Welding Equipment | TIG Welder, MIG Welder, Stick Welder | Perform the actual welding process |
| Welding Accessories | Filler Rods, Ground Clamps, Electrodes | Support welding functions and quality |
| Safety & Inspection | Helmets, Gloves, Weld Gauges, UT Testers | Protect welder and verify weld integrity |
Q1: Can I use the same tools for welding different types of pipe materials?
Yes, but some materials (e.g., stainless steel vs. carbon steel) may require specific filler rods, cleaning agents, or shielding gases.
Q2: Do I need all these tools to start pipe welding?
Not initially. Beginners can start with essential tools—like a stick welder, safety gear, and basic clamps—then gradually expand their toolkit.
Q3: How often should pipe welding tools be maintained or replaced?
Regularly. Inspection before each use is critical. Replace worn consumables like electrodes and ensure machines are calibrated and safe.
Pipe welding is both an art and a science. Whether you’re a beginner or a seasoned professional, having the right pipe welding tool at each stage of the process dramatically impacts the quality and safety of your work. By understanding the tools required—from measurement to inspection—you not only improve your welding technique but also ensure compliance with safety standards and industrial regulations.
Invest wisely in tools that match your welding goals. A well-equipped welder is a confident and competent one.
